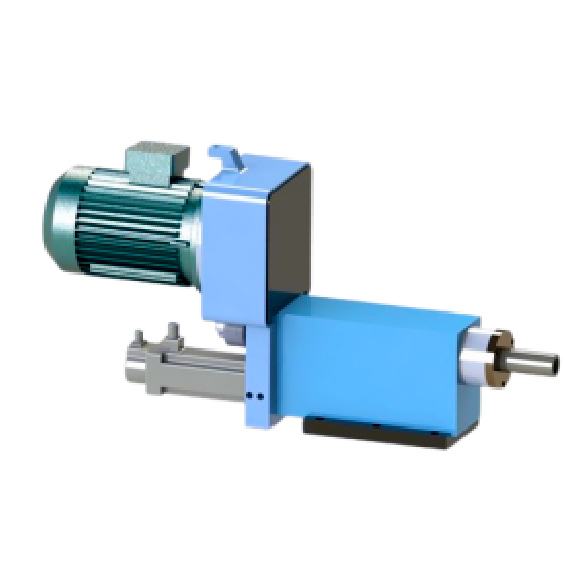

TAPPING SELF FEEDER UNITS(NC)
RVD 12NC
RVD 20NC
| Model | RVD 12NC | RVD 20NC |
|---|---|---|
| Max Drilling Cap in steel(400n/mm2) in mm | 12 | 20 |
| Max Tapping cap in steel (400n/mm2) | M8 | M12 |
| Spindle Nose | PB20/MT1/ER32 | PB25/MT2/ER32 |
| Spindle Motor | 0.75kw/440v | 1.5 kw/440v |
| Spindle Speed max | 2500 | 1500 |
| Total Travel in mm (servo Programmable) | 150 | 150 |
| Max axis force in kg | 150 | 250 |
| Control | PLC/HMI | PLC/HMI |

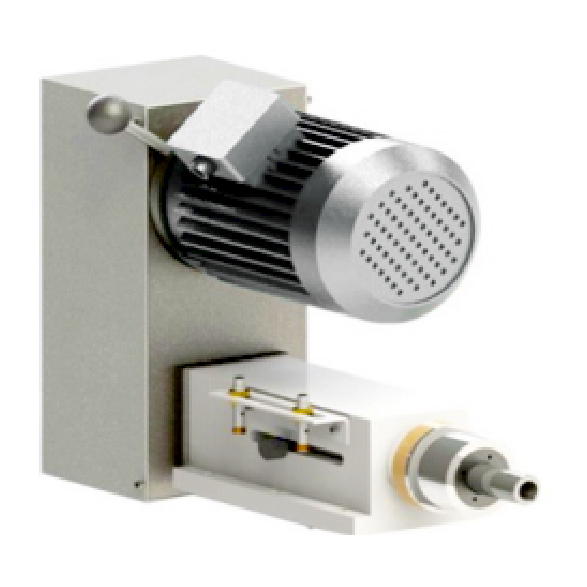

TAPPING UNIT LEAD SCREW MODEL
RVT8-60LSSF
RVT16-60LSSF
| Model | RVT8-60LSSF | RVT16-60LSSF |
|---|---|---|
| Max Tapping Capacity in steel (400n/mm²) | M4 to M8 | M8 to M16 |
| Spindle Type | PB 16 | PB 20 |
| Spindle Power | 0.37 KW/440V | 0.75kw/440V |
| Spindle speed (on request ) | Max 1500 rpm | Max 800 rpm |
| Lead screw pitch | 1 mm | 1.5 mm |
| Pitch range in mm | 0.7,0.8,1,1.25 | 1,1.25,1.5,1.75,2 |
| Quil Travel in mm | 60 | 70 |
